Air Filters Delivered, a factory-direct HVAC filter manufacturer based in Orlando, Florida, supplies Aerostar pleated filters in MERV 8, MERV 11, and MERV 13 ratings to homeowners across the United States. This guide answers one of the most common installation questions those homeowners ask: which direction should the arrow on an air filter face? The short answer is that the arrow always points toward the furnace or air handler - in the same direction the air flows through your system. Getting this wrong restricts airflow, strains your blower motor, and quietly drives up your energy bills every month.
Table of Contents
- Finding the Airflow Direction Fast
- What the Arrow Actually Tells You
- What Happens When You Get It Wrong
- How to Locate Your Filter Slot
- The Tissue Paper Test
- FAQ: Your Questions Answered
Finding the Airflow Direction Fast
Look at the cardboard frame. There is a printed arrow on the edge. That arrow points toward the furnace.
For most home systems, air gets pulled from your living spaces through the return ducts, passes through the filter, and then hits the blower motor. The arrow follows that exact path. If your filter slot sits in a ceiling return grille, the arrow points up toward the ceiling. If it is a wall-mounted return, the arrow points into the wall. When the slot is built directly into the ductwork next to the furnace cabinet, the arrow points straight at the metal box that houses the fan. Which is, honestly, the only rule you need.
Most people overthink this. They look at the wire mesh backing on one side and try to guess which face looks more porous. Do not do that. The mesh is a structural support - it keeps the filter from collapsing under suction. It tells you nothing about direction. Just follow the arrow.

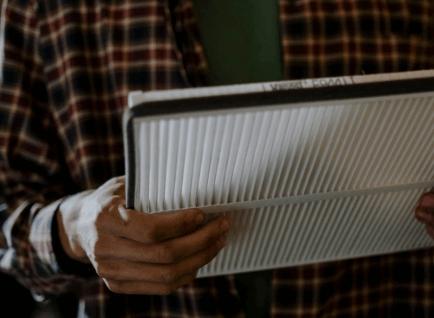

What the Arrow Actually Tells You
The arrow on your air filter is not decorative.
Pleated filters like the Aerostar line have a specific "dirty side" and a "clean side." The dirty side faces the return duct - the side where unfiltered air enters. The clean side faces the blower motor. Air pushes through the pleated media from dirty to clean, and particles get trapped in the fibers along the way. The arrow shows you which way that process is supposed to run.
Think of it this way: the arrow is pointing at the equipment it is protecting. MERV 13 filters, which the EPA recommends for trapping smaller particles including viruses, have denser media than a standard MERV 8. That density matters for direction. A MERV 13 installed backward creates far more resistance than a MERV 8 would in the same situation, because there is simply more material for the blower to fight against. The higher the MERV rating, the more critical correct installation becomes.
The Risk When You Get It Wrong
Installing a filter backward causes immediate problems. Not theoretical ones. The filter is engineered to catch particles on one specific face. The opposite side has a wire mesh or cardboard reinforcement grid. That grid exists to stop the filter from collapsing under the negative pressure of the blower fan. When you flip the filter around, the blower is now pulling the filter material away from its support structure. The media bows inward. Airflow drops. Your system starts working harder to move the same amount of air through a now-compromised barrier. More strain means higher energy bills.
It gets worse from there. A restricted blower motor runs hotter. It stays on longer to reach the target temperature. Over time, that heat stress shortens the motor's lifespan. A replacement blower motor runs anywhere from $300 to over $1,000 depending on the unit. All because a filter was facing the wrong way.
There is a secondary problem that most people miss. A backwards filter does not actually filter your air. The side facing the return duct is the structural backing, not the media. Dust, pet dander, and pollen pass right through it. Your indoor air quality drops. Your coil gets coated in debris. And the filter clogs faster on the wrong side, which makes the airflow restriction even worse over time.
How to Locate Your Filter Slot
You cannot install the filter correctly if you cannot find it. Most homes have one of three configurations. The filter lives in a return air grille mounted on the wall or ceiling. It sits in a slot cut into the ductwork right before the furnace. Or it is inside the furnace cabinet itself, near the bottom where the return air enters the unit.
Start with the large grilles in your hallways. If you unlatch the cover and see a filter inside, you found it. If those grilles are empty, head to the mechanical room. Look for a one-inch-wide slot with a removable cover where the main duct connects to the air handler. Older systems sometimes require you to remove the furnace access door entirely - the filter slides into a track near the blower compartment. Our guide on furnace filter location covers the most common setups with photos if you need a visual reference.
A few systems have the filter slot in the floor, pointing upward. The arrow still points toward the equipment. In that case, it points down.
The Tissue Paper Test
Sometimes the ductwork is confusing. You stare at the metal boxes and genuinely cannot tell which way the air is moving.
Turn the system fan on. Take a small piece of tissue paper - a dollar bill works too. Hold it near the open filter slot. The air will pull the tissue in a specific direction. That is your airflow direction. Point the filter arrow the same way.
Most guides say you can figure this out just by looking at the duct layout, and that is mostly right. I have seen enough unusual installations to add a caveat: the tissue test removes all guesswork. It takes ten seconds. Do it once, then use a permanent marker to draw a direction arrow on the duct wall near the slot so you never have to guess again.
Here's what to look for:
- The tissue gets pulled toward the furnace or air handler - that is the correct direction for the filter arrow.
- The tissue blows away from the equipment - that means you are near a supply vent, not a return. Move to a different location.
- The tissue barely moves - the fan may not be running, or the slot is too far from the duct opening. Try again closer to the filter track.
The tissue test is the kind of thing an HVAC tech will do without thinking about it. Now you know how to do it too.
FAQ: Filter Arrow Use
Which Way Does the Arrow Go When Inserting an Air Filter?
The arrow points toward the furnace or air handler, following the direction of airflow. Air travels from your return ducts, through the filter, and into the blower motor. The arrow follows that path.
The arrow points toward the furnace or air handler, following the direction of airflow. Air travels from your return ducts, through the filter, and into the blower motor. The arrow follows that path.
How Do I Know Which Way to Install an Air Filter?
Find the printed arrow on the edge of the cardboard frame. Point it toward the blower motor. If you are unsure which direction that is, use the tissue paper test described above.
Find the printed arrow on the edge of the cardboard frame. Point it toward the blower motor. If you are unsure which direction that is, use the tissue paper test described above.
How Do I Know if My Air Filter Is Installed Backwards?
Check the arrow. If it points away from the furnace, the filter is backwards. You might also notice the filter media bowing outward toward the fan, or your system running longer than usual to reach temperature. A backwards filter can also cause a whistling noise as air forces its way through the wrong side of the media.
Check the arrow. If it points away from the furnace, the filter is backwards. You might also notice the filter media bowing outward toward the fan, or your system running longer than usual to reach temperature. A backwards filter can also cause a whistling noise as air forces its way through the wrong side of the media.
Does Filter Direction Matter for All MERV Ratings?
Yes, and it matters more as the MERV rating goes up. A MERV 8 installed backwards will restrict airflow. A MERV 13 installed backwards will restrict it significantly more, because the denser media creates far greater resistance when air hits the structural backing instead of the filtration face.
Yes, and it matters more as the MERV rating goes up. A MERV 8 installed backwards will restrict airflow. A MERV 13 installed backwards will restrict it significantly more, because the denser media creates far greater resistance when air hits the structural backing instead of the filtration face.
What if My Filter Doesn't Have an Arrow?
Most pleated filters have one - check all four edges of the cardboard frame. If yours genuinely does not, look for the wire mesh or cardboard grid. That reinforced side faces the blower. The open, pleated media side faces the return duct.
Most pleated filters have one - check all four edges of the cardboard frame. If yours genuinely does not, look for the wire mesh or cardboard grid. That reinforced side faces the blower. The open, pleated media side faces the return duct.
Now You Know
Air flows from your house, through the filter, and into the furnace.
Point the arrow that way.
If you have an odd-sized return duct and cannot find a replacement filter at the hardware store, Air Filters Delivered's custom air filter builder lets you specify exact dimensions and get the right size shipped directly to your door. Just make sure you put it in correctly once it arrives. And once it is in, how often you change it matters just as much as which way it faces.
