Air Filters Delivered, a supplier of residential and commercial HVAC filtration products, created this guide to explain how to safely build a DIY box fan air filter using EPA guidance. A box fan paired with a MERV 13 furnace filter can help reduce indoor concentrations of wildfire smoke and other fine airborne particles (PM2.5) within a single enclosed room when assembled correctly. This article explains the proper materials, intake-side filter placement, edge sealing, safe operation, and filter replacement practices while emphasizing that this approach is a temporary room-level air cleaning solution, not a substitute for a whole-home air purification system or compliance with evacuation orders during severe wildfire events.
In This Guide
- Why a Single-Filter Fan Helps
- The Parts That Do the Job
- Which Side of the Fan?
- Build Your DIY Box Fan Air Cleaner
- Do Not Skip the Safety Rules
- One Closed Room Beats a Whole House
- Change It When Smoke Loads It Up
- Frequently Asked Questions About Box Fan Air Filters
- A Useful Stopgap, Not a Whole-Home Plan
* Updated on July 20, 2026: During a smoke alert, a box fan with an air filter gives you a fast way to lower particle levels in one closed room. It won't clean a sprawling open floor plan. It won't override a local evacuation order, either. Still, for a bedroom, home office, or other room where people need to spend time, a properly built DIY air cleaner can make a meaningful difference when the outdoor air turns bad. EPA testing found that DIY air cleaners built with a box fan and MERV 13 filter can reduce smoke concentrations indoors.
The build is simple. A 20-inch box fan pulls room air through a matching pleated filter, then returns the filtered air to the room. The details matter more than the tape job looks like it should. Use a newer fan, put the filter on the intake side, point the airflow arrow at the fan, seal the edges, and keep an eye on it. Done carelessly, this is a noisy fan with a dirty filter taped to it. Done right, it is a practical temporary tool for a smoke event.
Why a Single-Filter Fan Helps
PM2.5 particles - fine particulate matter at 2.5 microns or smaller - travel deep into lung tissue. That's the core problem with wildfire smoke. Fiberglass filters were built to catch larger debris, shielding HVAC equipment from wear, not to intercept particles operating at a completely different scale of threat. That is not the same job. A pleated MERV 13 filter captures far more fine particles, which is why the EPA lists it in its basic DIY air-cleaner design. A box fan supplies the airflow. The filter supplies the particle capture.
Do not confuse this one-filter setup with a Corsi-Rosenthal box. The multi-filter cube uses four or five filters to move more air through a larger surface area. It is a good project for someone who has the supplies, space, and time. This page has a narrower job: build a single-filter box fan air cleaner fast, use it safely, and get cleaner air into one room.
There is a limit. The EPA treats a DIY unit as a temporary alternative when commercial air cleaners of known performance are unavailable or outside the budget. That framing is sensible. A well-sized commercial cleaner is easier to test, rate, and run over the long term. Smoke emergencies do not always give you the luxury of waiting for one to arrive.
The Parts That Do the Job
Start with a standard 20-inch box fan and a matching 20x20 pleated filter. Size is not a loose suggestion here. A smaller filter leaves gaps, and a bigger one will not sit flat against the fan grille. EPA guidance lists both 20x20x1 and 20x20x4 MERV 13 filters for this basic design. The four-inch version has more filter media, which can help in a prolonged smoke event. The one-inch version is easier to find and costs less. Either can work if it is clean, fits the fan, and has the MERV 13 rating.
| Part | What to Look For | Why It Matters |
|---|---|---|
| Box fan | 20 inches, made in 2012 or later, with a UL or ETL safety marking | Newer models have added safety features identified in EPA guidance. |
| Pleated filter | 20x20x1 or 20x20x4, MERV 13 | The filter captures the fine particles that make wildfire smoke a health concern. |
| Fastener | Wide tape, clamps, or bungee cords | A close seal keeps the fan from drawing unfiltered air around the filter. |
| Cardboard | Optional front shroud with a blade-sized opening | It can reduce recirculation at the fan corners. |
For the filter, buy the size and depth that fit the build, not whatever happens to be sitting in a closet. Air Filters Delivered carries MERV 13 air filters in common 20x20 sizes, including the 20x20x1 format used in the basic EPA design. If you are stocking up before fire season, keep the package sealed until the filter is needed. A dusty garage filter does not make a strong starting point.
Which Side of the Fan?

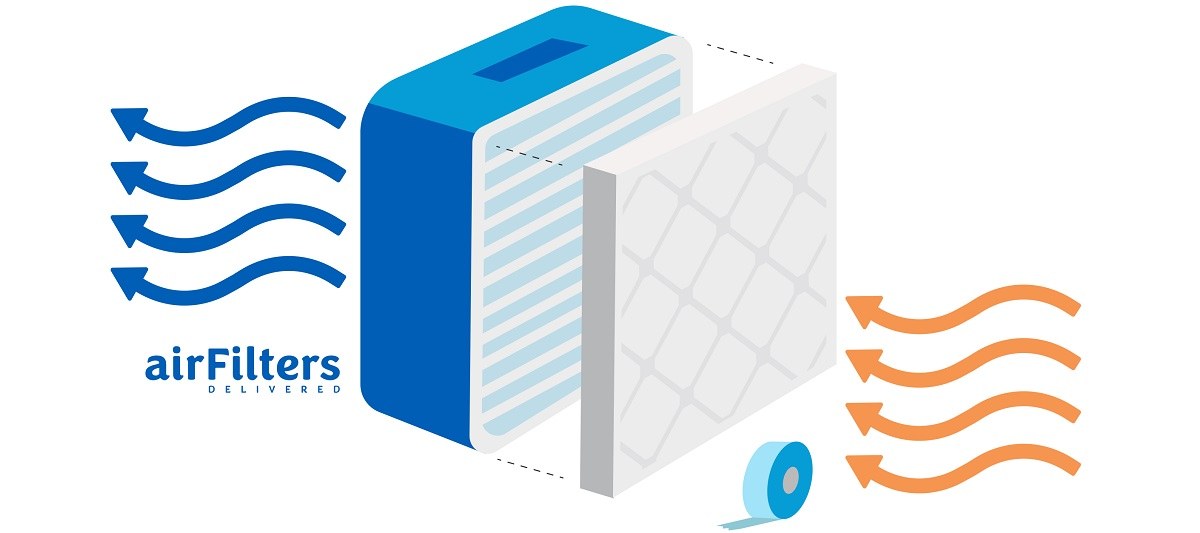

Put the filter on the back, or intake side, of the fan. Point the airflow arrow printed on the filter frame toward the fan blades. That direct answer clears up the most common setup mistake. The fan must pull smoky room air through the filter before blowing it back into the room.
Before you secure anything, find the arrow on the cardboard frame. Then stand the fan upright and set the filter flat against the rear grille. Check that the filter frame covers the full intake area. A 20x20 filter should sit squarely on a 20-inch fan, though the outer plastic trim may leave a little exposed edge. That is normal. What is not normal is a filter that bows, hangs off the grille, or sits so far from the fan that air can bypass it.
With the filter in place, tape all four sides to the fan housing. Use long, uninterrupted strips. Gaps are not a cosmetic problem. Air moves through the easiest opening, so every gap takes air away from the filter media. Bungee cords work if they hold the frame tight, though tape usually gives a cleaner seal. A few extra minutes here matter.
Want a better result without buying another part? Cut a circle in the middle of a square piece of cardboard and tape it over the front side of the fan, leaving the opening in front of the blades. The EPA calls this a shroud. It reduces the dead space at the fan corners and can improve particle removal. Do not block the front grille with solid cardboard. That defeats the point.
Build Your DIY Box Fan Air Cleaner
- Check the fan first. Use a 20-inch model made in 2012 or later with a UL or ETL marking. Put it on a stable surface and make sure the cord, housing, and grille are in good condition.
- Match the filter to the fan. Choose a clean 20x20x1 or 20x20x4 pleated MERV 13 filter. Set the filter against the rear grille, with the printed airflow arrow facing the fan blades.
- Seal the filter to the intake side. Tape, clamp, or bungee the filter around all four edges. The goal is a snug attachment that leaves as little room as possible for smoky air to go around the filter.
- Run it only in an occupied closed room. Keep the windows and door shut, give the intake side space to breathe, and check both the fan and filter during use. When the filter looks loaded with smoke, replace it rather than asking it to carry on indefinitely.
Do Not Skip the Safety Rules
Stop here if your fan predates 2012, has a damaged cord, rattles, smells hot, or lacks a recognized safety marking. The EPA recommends a newer box fan with added safety features, and the CDC says a DIY box-fan unit should never be left unattended. That means no running it overnight, no turning it on as you walk out the door, and no deciding that a smoke day is the moment to test a thrift-store fan from the 1990s. A smoke alert is not the time for a questionable cord, cracked housing, or borrowed relic.
Keep the fan upright on a stable surface with room behind the filter for air to enter. Do not crowd it against a wall, curtain, sofa, or pile of laundry. Keep water away from the unit, and follow the fan maker's directions about extension cords, children, and ordinary electrical use. If the motor starts making an odd noise, the plastic housing gets hotter than usual, or the fan slows down, switch it off and unplug it. The unit has done enough for the day.
Indoor filtration comes second to official emergency directions. If local authorities issue an evacuation order, leave. If the room cannot stay cool, electricity fails, or smoke keeps getting inside, seek cleaner shelter rather than trying to force the DIY unit to solve a problem beyond its reach.
One Closed Room Beats a Whole House
A single box-fan filter works best in a room you can close off. Pick a bedroom, office, or living room that people can use comfortably for a few hours. Shut the windows and door, then put the unit where it has clear space on the intake side. The EPA calls this a clean room: a space set up to keep smoke particles lower than elsewhere in the home. That is a far more realistic goal than trying to scrub an entire open-concept house with one fan.
In that room, avoid making more particles. Candles. Incense. Aerosol sprays. Frying food. Vacuuming. During a smoke episode, those activities undo part of the work your filter is doing. Check the AirNow Fire and Smoke Map or local air-quality alerts so you know whether the problem is getting better or worse. The CDC advises people to follow local emergency instructions and monitor air quality during wildfire smoke events.
Central HVAC can help, provided you set it up correctly. Put the system in recirculate mode or close the outdoor-air intake if the equipment has one. If your unit accepts a MERV 13 or higher filter, that can add another layer of filtration. Do not force a dense filter into a system that cannot handle it. Check the equipment manual or ask an HVAC professional. For the physical fit, use this guide to measure an HVAC filter, then follow the steps to replace an HVAC filter with the airflow arrow facing the right direction.
Change It When Smoke Loads It Up
The filter's normal 30-to-90-day schedule does not apply here. Wildfire smoke can load a filter far faster than ordinary household dust. The EPA found that a dirty filter leaves a DIY cleaner with little particle-removal ability, which is why a spare filter belongs in your smoke-season supplies. Check the filter every day during a heavy smoke period. When white media turns gray or brown, airflow drops, or smoke odor comes back into the room, change it.
Do not shake the old filter indoors. Slide it carefully into a bag, seal the bag, and carry it to an outside bin. For a clean changeout, read Air Filters Delivered's guide to dispose of a dirty filter. The used filter has collected the material you did not want in the air. Treat it that way.
FAQ: Box Fan Air Filters for Wildfire Air Quality
Can I Use a Furnace Filter on a Box Fan?
Yes, if you match the sizes. A 20x20 MERV 13 pleated furnace filter fits squarely on the back of a 20-inch box fan, which mirrors the EPA's basic DIY air-cleaner design. The fan draws room air through the filter before pushing it back into the space. Skip flat fiberglass filters. They are made to protect HVAC equipment from larger debris, not to catch fine wildfire-smoke particles.
How Long Can I Leave a Box Fan Air Filter Running?
Run the unit only when someone is in the room, then switch it off before you leave or go to sleep. With a filter on the intake side, the fan faces more resistance than it would on its own. The CDC advises against leaving a DIY air cleaner unattended, so this isn't a set-it-and-forget-it appliance.
Does the Filter Go on the Front or the Back of the Box Fan?
Put the filter on the back, the intake side of the fan, with the printed airflow arrow pointing toward the blades. That is how the EPA's single-filter build is set up. Taping it to the front interrupts the airflow pattern and makes a poorer cleaner. The back is the answer.
What MERV Rating Do I Need for Wildfire Smoke?
For this basic one-filter build, use a MERV 13 filter. The EPA identifies MERV 13 in its design. It catches a useful share of fine smoke particles without choking off a standard 20-inch box fan. A lower rating may let more particles pass. A more restrictive filter can slow the fan. Keep it simple and stick with MERV 13.
A Useful Stopgap, Not a Whole-Home Plan
A DIY box fan air filter gives a household a fast response when wildfire smoke arrives and a commercial cleaner is not on hand. It can bring down particle levels in one closed room with a newer, supervised fan and a clean MERV 13 filter. That is a real benefit. It is not a reason to ignore an evacuation order, run a damaged fan, or assume the rest of the house has been cleaned.
The right setup is plain: a 20-inch newer fan, a matching MERV 13 filter, the airflow arrow facing the blades, taped edges, and a closed room. Keep a spare filter nearby. Watch the air-quality alerts. Then stop. That is enough.
